IR HiRel柵極驅動器 IC
發布時間：2021-07-27 17:10:17 瀏覽：887
每個開關都需求一個驅動程序——精確的驅動程序會有所作為。電力電子應用選用電力設備開關。功率設備開關需求最佳的格柵驅動解決方案。這就是為何IR HiRel供應 500 多種 EiceDRIVER? 柵極驅動器 IC 解決方案，適用于任何電源開關和任何應用。

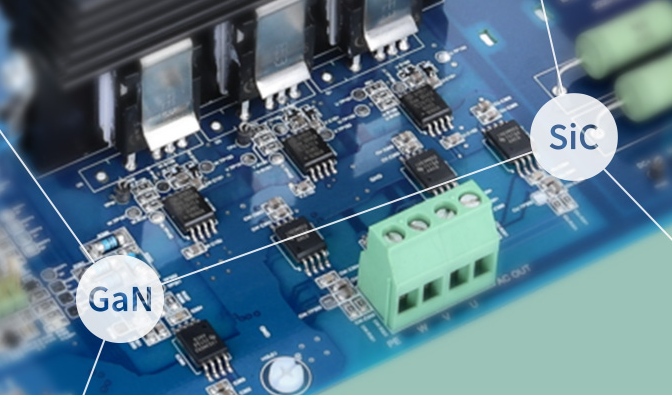

IR HiRel EiceDRIVER柵極驅動器供應局限廣的典型輸出電流選項，從0.1-A到高達10-A。壯大的柵極驅動護衛功效，如快速短路護衛 (DESAT)、有源米勒鉗位、擊穿護衛、故障、關斷和過流護衛，使這些驅動器 IC 很適合硅和寬帶隙功率器件， 包括 CoolGaN?， 和 CoolSiC?。
深圳市立維創展科技有限公司，優勢渠道供貨IR高可靠性系列產品，歡迎各界前來咨詢。
詳情了解IR HiRel，請點擊：http : //xzpengyu.com/public/brand/65.html
或聯系我們的銷售工程師： 0755- 83642657 QQ： 2295048674
*詳情了解更多型號請聯系我們的銷售工程師！
Product | Voltage Class [V] | Output Current Source [A] | Output Current Sink [A] | Channels | Turn On Propagation Delay [ns] | Turn Off Propagation Delay [ns] | Input Vcc min [V] | Input Vcc max [V] | Output Vbs min [V] | Output Vbs max [V] | Fall Time [ns] | Rise Time [ns] | UVLO Input On [V] | UVLO Output On [V] |
1ED3120MC12H | 2300 | 5.5 | 5.5 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 10 |
1ED3121MC12H | 2300 | 5.5 | 5.5 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3122MC12H | 2300 | 10 | 9 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 10 |
1ED3123MC12H | 2300 | 13.5 | 14 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 10 |
1ED3124MC12H | 2300 | 13.5 | 14 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3124MU12F | 2300 | 13.5 | 14 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3125MU12F | 2300 | 10 | 9 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3131MC12H | 2300 | 5.5 | 5.5 | 1 | 280 | 280 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3240MC12H | 2300 | 10 | 10 | 1 | 110 | 110 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3241MC12H | 2300 | 18 | 18 | 1 | 110 | 110 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3250MC12H | 2300 | 5 | 10 | 1 | 110 | 110 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3251MC12H | 2300 | 9 | 18 | 1 | 110 | 110 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3431MC12M | 2300 | 3.8 | 2.5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED3461MC12M | 2300 | 7.5 | 5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED3491MC12M | 2300 | 11 | 7.5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED3830MC12M | 2300 | 3.8 | 2.5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED3860MC12M | 2300 | 7.5 | 5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED3890MC12M | 2300 | 11 | 7.5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1EBN1001AE | 40 |
|
| 1 | 10 | 10 |
| 28 |
|
|
| 50 |
|
|
1ED020I12-B2 | 1200 | 2 | 2 | 1 | 170 | 165 | 4.5 | 5.5 | 13 | 20 | 50 | 30 | 4.1 | 12 |
1ED020I12-BT | 1200 | 2 | 2 | 1 | 1750 | 1750 | 4.5 | 5.5 | 13 | 20 | 20 | 30 | 4.1 | 12 |
1ED020I12-F2 | 1200 | 2 | 2 | 1 | 170 | 165 | 4.5 | 5.5 | 13 | 20 | 50 | 30 | 4.1 | 12 |
1ED020I12FA2 | 1200 | 2.1 | 2.1 | 1 | 170 | 165 |
| 20
20 |
|
|
| 30 |
| 12 |
1ED020I12FTA | 1200 | 2 | 2 | 1 | 1750 | 1900 |
| 20 |
|
|
| 30 |
| 12 |
1ED020I12-FT | 1200 | 2 | 2 | 1 | 1750 | 1750 | 4.5 | 5.5 | 13 | 20 | 20 | 30 | 4.1 | 12.6 |
1ED3120MU12H | 2300 | 5.5 | 5.5 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 10 |
1ED3121MU12H | 2300 | 5.5 | 5.5 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3122MU12H | 2300 | 10 | 9 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 10 |
1ED3123MU12H | 2300 | 13.5 | 14 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 10 |
1ED3124MU12H | 2300 | 13.5 | 14 | 1 | 90 | 90 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3131MU12H | 2300 | 5.5 | 5.5 | 1 | 280 | 280 | 3.1 | 17 |
|
| 30 | 30 | 3.1 | 12.5 |
1ED3431MU12M | 2300 | 3.8 | 2.5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED3461MU12M | 2300 | 7.5 | 5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED3491MU12M | 2300 | 11 | 7.5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED3830MU12M | 2300 | 3.8 | 2.5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED3860MU12M | 2300 | 7.5 | 5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED3890MU12M | 2300 | 11 | 7.5 | 1 | 244 | 236 | 3 | 6.5 |
|
| 15 | 15 | 2.95 | 12 |
1ED44173N01B | 25 | 2.6 | 2.6 | 1 | 34 | 34 | 8.6 | 20 |
|
| 5 | 5 | 8 | 8 |
1ED44175N01B | 25 | 2.6 | 2.6 | 1 | 50 | 50 | 12.7 | 20 |
|
| 5 | 5 | 11.9 | 11.9 |
1ED44176N01F | 25 | 0.8 | 1.75 | 1 | 50 | 50 | 12.7 | 20 |
|
| 25 | 50 |
|
|
1EDF5673F | 650 | 4 | 8 | 1 | 37 | 41 | 3 |
| 6.5 | 20 | 4.5 | 6.6 | 2.85 | 5.8 |
1EDF5673K | 650 | 4 | 8 | 1 | 37 | 41 | 3 |
| 6.5 | 20 | 4.5 | 6.5 | 2.85 | 5.8 |
1EDI05I12AF | 1200 | 1.3 | 0.9 | 1 | 300 | 300 | 3.1 | 17 | 13 | 35 | 9 | 10 | 2.85 | 12 |
1EDI10I12MF | 1200 | 2.2 | 2.3 | 1 | 300 | 300 | 3.1 | 17 | 13 | 18 | 6 | 9 | 2.85 | 12 |
1EDI2002AS | 1200 |
|
| 1 | 215 | 215 |
| 28 |
|
|
| 120 |
| 12.5 |
1EDI2004AS | 1200 | 2 | 2 | 1 |
|
| 4.65 | 5 | 13.5 | 18 |
|
|
|
|
1EDI2010AS | 1200 |
|
| 1 | 215 | 215 |
| 28 |
|
|
| 120 |
| 12.5 |
1EDI20I12AF | 1200 | 4 | 3.5 | 1 | 300 | 300 | 3.1 | 17 | 13 | 35 | 9 | 10 | 2.85 | 12 |
1EDI20I12MF | 1200 | 4.4 | 4.1 | 1 | 300 | 300 | 3.1 | 17 | 13 | 18 | 6 | 9 | 2.85 | 12 |
