WRV系列轉換器采用了原始設計，具備高頻脈沖寬度調制(PWM)電流模式調節器，能夠支持極寬的輸入電壓范圍。這種設計使得WRV系列特別適合于非穩壓電源應用，例如電池和太陽能電池等，同時也適用于需要多種電源輸入的系統。由于不需要預調節器，這種設計不僅簡化了系統結構，還降低了成本。此外，WRV系列能夠實現嚴格的輸出電壓調節，并提供非常低的無脈沖紋波，溫度系數(TC)低于50 ppm/°C。
WRV系列提供三種輸出電壓范圍：0至2kV、2.5kV或3kV。同時，它支持三種輸入電壓范圍：3.6至10Vdc、6至15Vdc以及1.5至26Vdc，輸出功率為1W。這些特性使得WRV系列轉換器在多種電源環境中都能提供穩定可靠的電力轉換解決方案。
規格參數：
| Parame ters | Specifications | ||||||||||||
| Input vol- tageVin (pins 1&2 | [5]:absolute maximum 15Vdc,recommended:from 3.6 to 10Vdc [12]:absolute maximum 28Vdc,recommended:from 6 to 15Vdc [24]:absolute maximum 28Vdc,recommended:from 13.5 to 26Vdc | ||||||||||||
| Input current (roomtem- perature | [5] | [12] | [24] | ||||||||||
| Vin | 3.6Vdc 10.0Vdc | 5.0Vdc | 10.0Vdc | 6.0Vdc | 12.0Vdc | 15.0Vdc | 13.5Vdc | 24.0Vdc | 26.0Vdc | ||||
| Inibit Mode | <40μA | <60μA | <150μA | <70μA | <200μA | <300μA | <240μA | <600μA | <650μA | ||||
| HV setting = 0V | <6mA | <5mA | <5mA | <2mA | <2.5mA | <3mA | <5mA | <6mA | <6mA | ||||
| HV setting = 2.5Vdc no load | <110mA | <90mA | <55mA | <70mA | <50mA | <40mA | <55mA | <40mA | <40mA | ||||
| HV setting= 2.5Vdc full load | <560mA | <440mA | <220mA | <350mA | <180mA | <150mA | <160mA | <95mA | <90mA | ||||
| HVoutput Vout (pin 9) | Programmable voltage:referto the Selection Guide for voltage ranges | ||||||||||||
| Polarity | Fixed positiveor negative | ||||||||||||
| HV setting (pins 3,4) | Via an external voltage source 0 to+2.5Vdc. An external potentiometer,minimum resistance 2k,canbe used assosiated with the reference voltage(pin5) The input impedance of the HV setting is 1M. Accuracy:+/-0.2%at ratedoutput voltage. | ||||||||||||
| Max.output current lout | Refer to the Selection Guide | ||||||||||||
| Load voltage regulation | ±0.01%for no load to full load | ||||||||||||
| Line voltage regulation | ±0.01 %over recommended input voltage range | ||||||||||||
| Residual ripple | 0.002% | ||||||||||||
| Temperature coefficient | <50ppm/℃ | ||||||||||||
| Output HVmonitoring (pin 6) | 0/+3,000V,output impedance=1kQ Accuracy:+/-0.2%at rated output voltage | ||||||||||||
| Output current monitoring (pin 7) | 0/+3,000V,output impedance=10 Accuracy:+/-1%after compensation (see note) | ||||||||||||
| Output reference voltage (pin5) | Refer to the Selection Guide | ||||||||||||
| Inhibition mode (pin 8) | ±0.01%for no load to full load | ||||||||||||
| Operatingcase temperature | -40℃ to+80℃ | ||||||||||||
| Storage temperature | -40℃to+80℃ | ||||||||||||
| Safeguards | ·Arc and short circuit protection ·Soft start feature:the start is guaranted with no overshoot ·Protected against reverse Vin (-30Vdc max.) ·HV | ||||||||||||

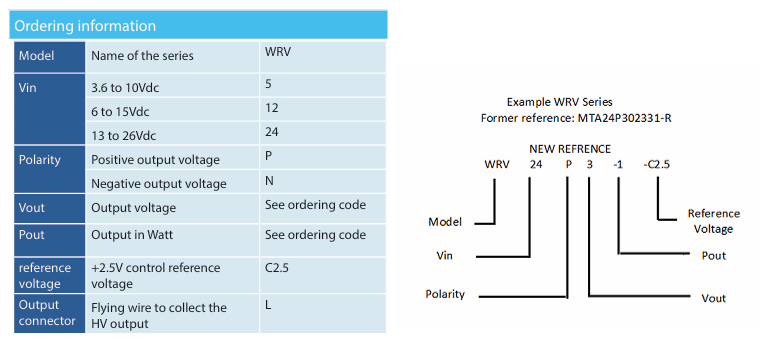

訂購指南：
