- 產品詳情
BTS5215L是一款高側電源開關，集成了垂直功率 FET，提供嵌入式保護和診斷功能。

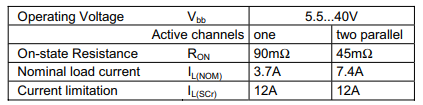

| Parametrics | BTS5215L |
|---|---|
| Channels | 2 |
| Current Limit min | 9 A |
| Diagnostics | Digital |
| Family | Classic PROFET? 24V |
| IL (Short Circuit Current) | 15 A |
| Load Current | 4.7 A |
| Mounting | SMT |
| Nominal Load Current per channel (All channels active) | 4.7 A |
| Operating Temperature min max | -40 °C 150 °C |
| Ptot max | 3.1 W |
| Qualification | Automotive |
| RDS (on) (@ Tj = 25°C) | 70 m? |
| RDS (on) (@ Tj = 150°C) max | 180 m? |
| Recommended Operating Voltage min max | 5.5 V 40 V |
| toff (Turn OFF time) max | 270 μs |
| ton (Turn ON time) max | 250 μs |
