RA2A1 微控制器Renesas
發布時間:2023-02-10 16:51:51 瀏覽:463
Renesas的RA2A1微控制器(MCU)系列選用性能卓越Arm?Cortex?-M23內核模塊,提供高寬比集成化、高精度模擬性能參數。RA2A1微控制器提供一整套MCUS脈沖調制和檢測模擬解決方案。RA2A1微控制器兼容1.6V~5.5V的寬工作輸入電壓范圍。主要包括一個16位SARADC,一個24位Sigma Delta ADC,一個比較器,一個運算放大器和一個DAC。RA2A1微控制器的目的是成本費用敏感和低耗能的工業傳感器應用,當中高分辨率模擬無疑是個成本優勢。
特征
48MHzArm?Cortex?-M23
256kB閃存及其32kBSRAM
與EEPROM存儲信息功能相似的8kB數據閃存
能從32管腳封裝拓展至64管腳封裝
電容傳感器觸摸傳感模塊
16位SARA/D,24位SDA/D
12位D/A,8位D/A
OPAMP(3ch),ACMP-HS/LP
加速USB2.0
CAN2.0
SCI(UART、簡單SPI、簡單I2C)
應用領域
工控自動化(光電傳感器、光纖傳感器、溫度傳感器)
流程自動化(壓力傳感器、流量控制計、單相電度表)
樓宇智能化/家電產品(煙霧報警器)
健康保健(脈搏血氧儀、身體指數檢測)
一般用途
Renesas電子初始成立于日本,Renesas主要以MPU、接口電路、電源管理、光電子以及航天應用產品為特色。Renesas提供專業可靠和創新的嵌入式設計和完整的半導體解決方案,旨在通過使用其產品的數十億連接智能設備來改善人們的工作和生活方式。Renesas是微控制器的領先供應商,也是世界上模擬電源設備和SoC產品的領先供應商。Renesas電子公司為汽車、工業、基礎設施和物聯網應用提供全面的解決方案。
深圳市立維創展科技有限公司,優勢代理分銷Renesas產品線,部分系列常備現貨。
詳情了解Renesas請點擊:http : //xzpengyu.com/public/brand/59.html
Product ID | Data Flash (KB) | RAM (KB) | Lead Count (#) | Supply Voltage (V) | Operating Freq (Max) (MHz) | I/O Ports | Timer | ADC | DAC | Bit Size | Temp. Range |
R7FA2A1AB2CBT#AC0 | 8 | 32 | 36 | 1.6 - 5.5 | 48 | 22 | 16-bit x 3-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 1-ch(differential), 16-bit x 5-ch(single end), 24-bit x 1-ch(differential), 24-bit x 2-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 85°C |
R7FA2A1AB3CFJ#AA0 | 8 | 32 | 32 | 1.6 - 5.5 | 48 | 20 | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 1-ch(differential), 16-bit x 5-ch(single end), 24-bit x 1-ch(differential), 24-bit x 2-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 105°C |
R7FA2A1AB3CFM#AA0 | 8 | 32 | 64 | 1.6 - 5.5 | 48 | 49 | 16-bit x 6-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 4-ch(differential), 16-bit x 17-ch(single end), 24-bit x 4-ch(differential), 24-bit x 8-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 105°C |
R7FA2A1AB3CNE#AC0 | 8 | 32 | 48 | 1.6 - 5.5 | 48 | 33 | 16-bit x 6-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 3-ch(differential), 16-bit x 12-ch(single end), 24-bit x 3-ch(differential), 24-bit x 6-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 105°C |
R7FA2A1AB3CNF#AC0 | 8 | 32 | 40 | 1.6 - 5.5 | 48 | 25 | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 1-ch(differential), 16-bit x 8-ch(single end), 24-bit x 2-ch(differential), 24-bit x 4-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 105°C |
R7FA2A1AB3CFJ#BA0 | 8 | 32 | 32 | 1.6 - 5.5 | 48 | 20 | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 1-ch(differential), 16-bit x 5-ch(single end), 24-bit x 1-ch(differential), 24-bit x 2-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 105°C |
R7FA2A1AB3CFM#BA0 | 8 | 32 | 64 | 1.6 - 5.5 | 48 | 49 | 16-bit x 6-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 4-ch(differential), 16-bit x 17-ch(single end), 24-bit x 4-ch(differential), 24-bit x 8-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 105°C |
R7FA2A1AB3CNE#AA0 | 8 | 32 | 48 | 1.6 - 5.5 | 48 | 33 | 16-bit x 6-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 3-ch(differential), 16-bit x 12-ch(single end), 24-bit x 3-ch(differential), 24-bit x 6-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 105°C |
R7FA2A1AB3CNE#BA0 | 8 | 32 | 48 | 1.6 - 5.5 | 48 | 33 | 16-bit x 6-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 3-ch(differential), 16-bit x 12-ch(single end), 24-bit x 3-ch(differential), 24-bit x 6-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 105°C |
R7FA2A1AB3CNF#AA0 | 8 | 32 | 40 | 1.6 - 5.5 | 48 | 40 | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 1-ch(differential), 16-bit x 8-ch(single end), 24-bit x 2-ch(differential), 24-bit x 4-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 105°C |
R7FA2A1AB3CNF#BA0 | 8 | 32 | 40 | 1.6 - 5.5 | 48 | 40 | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 1-ch(differential), 16-bit x 8-ch(single end), 24-bit x 2-ch(differential), 24-bit x 4-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 32 | -40 to 105°C |
上一篇: Glenair高速微型壓接矩形連接器
下一篇: CLTE-AT? 層壓板Rogers
推薦資訊
Broadcom? PEX8734提供多主機PCIExpress連接功能,使用戶可通過可擴展性的、高帶寬、無堵塞相互連接將多臺主機連接到不同的端點以及各種技術應用,包括服務器、存儲體系和通訊平臺。PEX8734特別適合輸出、聚集和對等應用領域。

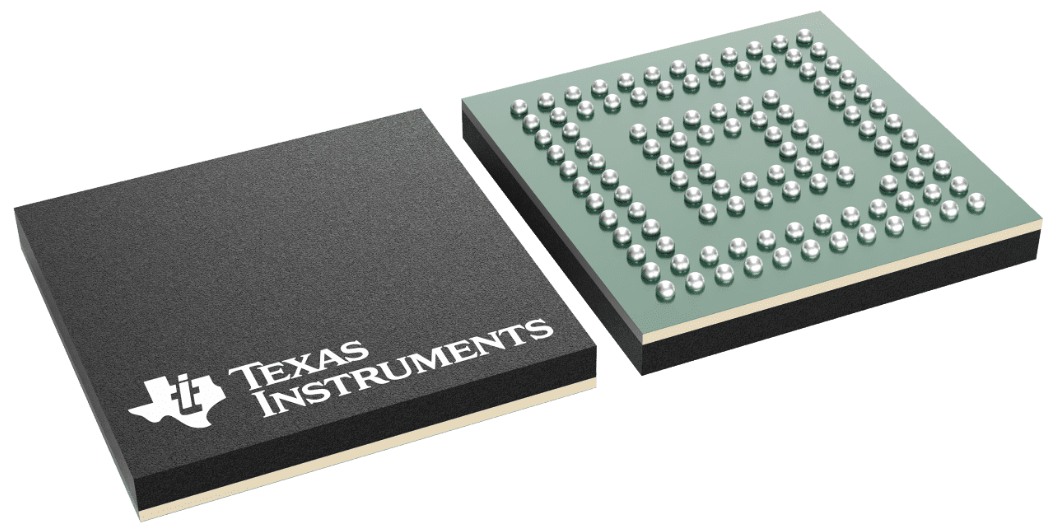

MSP430F5436A是TI德州儀器一款超低功耗微控制器,適用于便攜式測量應用,具有低功耗特性、高性能16位RISC CPU、靈活的電源管理系統、豐富的外設配置和寬工作溫度范圍,非常適合電池供電的設備。
